Capstans
As an integral part of your quick release mooring hooks or separate custom-made capstans
Quick Release Mooring Hooks for Jetties
Our Quick Release Mooring Hooks are especially designed to guarantee safe and efficient mooring operations at oil, gas, LNG, chemical, iron, coal and grain jetties. All hooks are available in single and multiple assemblies and can be equipped with a wide range of options.
Over 50 years of experience in manufacturing
Designed, engineered and built in the Netherlands
High quality products and excellent service level
Continuous innovation and improvement
Quick release mooring hooks for jetties
Quick release mooring hooks enable safe and controlled mooring operations on jetties and terminals. Designed for daily use, they support reliable vessel mooring across a wide range of port and terminal applications.
Straatman supplies mooring hooks for oil, gas, chemical, and bulk terminals worldwide, where controlled release and operational reliability are essential.
Quick Release Mooring Hook Specifications
Our quick release mooring hooks are available in a range from 40 to 200 tons safely handling workloads (SWL) per hook. Typical mooring hook configurations are:
- single mooring hooks units;
- double mooring hook units;
- triple mooring hook units;
- quadruple mooring hook units;
- multiple back-to-back mooring hook units.
On request, we can design and produce customised quick release mooring hook units, based on specific requirements. For replacement projects, we adapt the hook design to fit existing anchor dimensions and bolt patterns.
Straatman Quick Release Mooring Hook

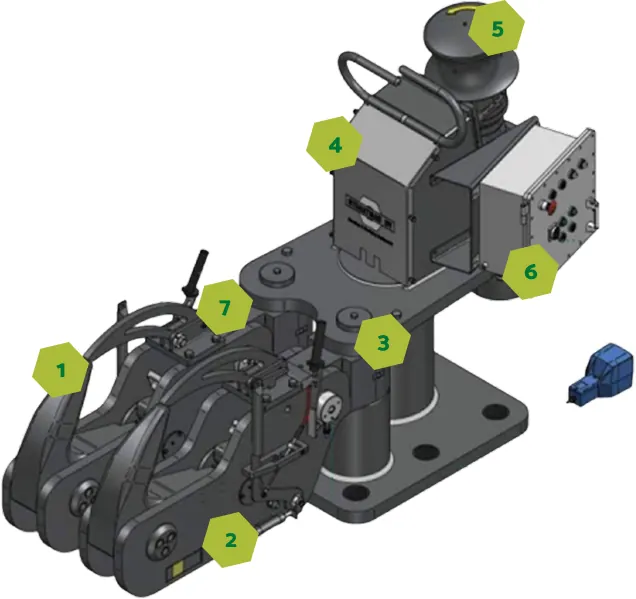

An example of our quick release mooring hooks including various options:
1
Rope keepers
In some specific situations, there is a risk of the mooring rope slipping of the quick release hook. In order to avoid this risk a hook can be euiped with a rope keeper that prevents the rope from slipping
2
Remote release
All quick release hooks can be equipped with an electric or electric-hydraulic release mechanism.
3
Mooring load monitoring system
With inhook load cell calibration facility, locally and remote controlled by our MoorControl software.
4
Self supporting
All hooks are self supporting. All movements are limited to prevent contact with the structure.
5
Integrated vertical capstan
The capstan allows hauling in of the mooring line in a safe and efficient way.
6
Explosion proof version components
For hazardous zone, in conformance with ATEX, IECEx and Class 1 division 2.
7
Counter balanced hook
The hook parts are made of forged steel and are counterbalanced.
Safe and Controlled Release
The Straatman quick release mooring hook can be operated manually with minimal effort, even at full safe working load. To prevent accidental opening, a two-step release mechanism is used. After release, the hook can be reset manually through a simple rotational movement. During release, rubber blocks absorb energy, thereby reducing impact forces and protecting surrounding components
All hooks are tested in our own factory on our calibrated 3,500 kN hydraulic testing machine, and all test certificates will be issued as a part of the user manual and construction file. On request, a classification authority of your choice can witness the test.
Other mooring systems
We are your partner for your complete mooring system! We can integrate features such as:
